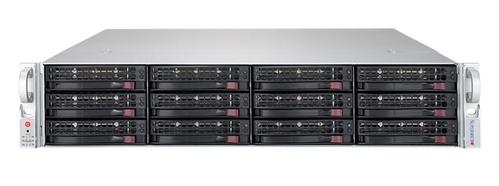

SUPERMICRO Server Geh Super Micro 2U/2x1200W/12x3.5" SC826BAC4-R1K23WB ohne OS
|
|
SUPERMICRO Server Geh Super Micro 2U/2x1200W/12x3.5" SC826BAC4-R1K23WB ohne OS
-
Power supply
1200W
-
Type
Rack
-
Color
Black
|
Description
Specifications
SuperChassis 826BAC4-R1K23WB
Features:
- 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed
- 12 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay
- 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD
- 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
- 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
- WIO Slots (4x Full-height, Half-length + 3x Low-profile)
- 3 x 8cm high-performance PWM fan(s)
- Optional 5 x 6cm 4pin high performance fan(s)
Specifications:
Form Factor
- 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68".
- Support up to 12"x13" MB with rear 2.5" HDD option installed
Processor Support
- Dual and Single Intel® and AMD processors
Dimensions
- Height
- Width
- Depth
- Net Weight
- Gross Weight
- Packaging
- (W x H x L) 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
- Available Color
Expansion Slots
- WIO Slots (4x Full-height, Half-length + 3x Low-profile)
Drive Bays
- 12 x 3.5" hot-swap drive bay
- Optional 2 x 2.5" hot-swap drive bay
- 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD
Backplane
- 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
Front Panel
- Buttons
- Power On/Off button
- System Reset Button
- LEDs
- 2 Network Activity LEDs
- Fan
Fail/System Over Heat LED
- HDD activity LED
- Power Status LED
- Unit Identification (UID) LED
Systems Cooling
- Fans
- 3 x 8cm high-performance PWM fan(s)
- Optional 5 x 6cm 4pin high performance fan(s)
System Monitoring
Operating Environment (System)
- Operating Temperature Range
- Non-Operating Temperature Range
- -40°C - 70°C (-40°F - 158°F)
- Operating Relative Humidity Range
- 8% - 90% (non-condensing)
- Non-Operating Relative Humidity Range
- 5% - 95% (non-condensing)
Power Supply
- 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
- Power Efficiency
- Total Output Power and Input
- 1000W with Input 100 - 127Vac
- 1200W with Input 200 - 240Vac
- 1200W with Input 200 - 240Vdc
- AC Input Frequency
- Dimensions (L x W x H)
- Output Type
- +12V
- Max: 83A (100Vac - 127Vac)
- Max: 100A (200Vac - 240Vac)
- Max: 100A (200 - 240)
- +5Vsb
- Power Distributor
- PDB-PT826-S8824
- O/P: 12V/135A
- +5V Max: 40A
- +3.3V Max: 24A
- -12V Max: 0.6A
- Certification
Regulatory (Power Supply)
- Power Supply Safety / EMC
- BSMI
- CCC
- CE/EMC
- FCC class A
- UL/CB
- UL/CUL
| Form factor | Rack |
| Type | Server |
| Product colour | Black |
| Number of 3.5" bays | 12 |
| Number of expansion slots | 7 |
| Rack mounting | Yes |
| Side window | No |
| Backplanes support | Yes |
| Reset button | Yes |
| LED indicators | Fan fail,HDD,Network,Power |
| Power supply included | Yes |
| Power supply | 1200 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Audio input | No |
| Audio output | No |
| Supported HDD sizes | 3.5" |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 437 mm |
| Depth | 647 mm |
| Height | 89 mm |
| Package width | 678 mm |
| Package depth | 876 mm |
| Package height | 290 mm |
| Package weight | 24.9 kg |
