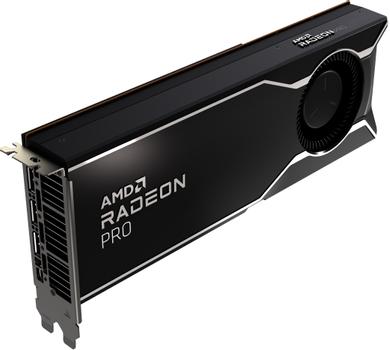

SAPPHIRE AMD Radeon Pro W7800 lite 48GB GDDR6
|
|
SAPPHIRE AMD Radeon Pro W7800 lite 48GB GDDR6
-
GPU Family
AMD
-
GPU
Radeon PRO W7800
-
Interface
PCI Express 4.0
-
Video Memory
48GB
-
Video Memory Type
GDDR6
-
Memory Bus
384
-
HDMI
0
-
Displayport
4
-
USB-C
0
-
Profile
Dual Slot
-
Cooling Type
Active
|
AMD RADEON PRO W7800 48GB
32353-01
Features:
- 48GB GDDR6 Memory with ECC Support
- Efficient Chiplet Design
- 2x AI Accelerators per Compute Unit
- 2nd Generation Ray Tracing
- 2x Simultaneous Encode/Decode Streams
- AI Enhanced Video Encode
- AV1 Encode/Decode
- NEW AI Enhanced Video Encode
- NEW AMD Radiance Display™ Engine
- DisplayPort™ 2.1 with up to 80Gbit/s
- Up to 12K120 display support
- Support for next-gen displays
Specifications:
GPU
- AMD RADEON™ PRO W7800
- AMD RDNA™ 3 Architecture
Interface
Compute Units
Ray Accelerators
AI Accelerator
Stream Processors
TFLOPS
- Peak Half Precision: 90.5 TFLOPS
- Peak Single Precision: 45.25 TFLOPS
- Peak Double Precision: 1.41 TFLOPS
TOPS
- Peak INT4 Performance: 181 TOPS
- Peak INT8 Performance: 90.4 TOPS
Transistor Count
Memory Size/Bus
- 48GB GDDR6
- 18 Gbps Memory Speed
- 384 bit Memory Bus
- 864 GB/s Peak Memory Bandwidth
Infinity Cache
Displays
- 4x DisplayPort™ 2.1a
- DISPLAY CONFIGURATIONS
- 4x4096x2160(4K DCI)@120Hz with DSC
- 2x6144x3456(6K) 12-bit HDR@60 Hz Uncompressed
- 1x7680x4320(8K) 12-bit HDR@60 Hz Uncompressed
- 1x12288x6912(12K)@120 Hz with DSC
AMD Technologies
- AMD Viewport Boost
- AMD Remote Workstation
- AMD Radeon™ Media Engine
- AMD Software PRO Edition
- AMD Radeon™ VR Ready Creator
- AMD Radeon™ ProRender
API
- DirectX 12 Ultimate
- OpenGL 4.6
- Vulkan 1.3
- Open CL 2.1
Additional Infomation
- Video Formats
- 1x Encode & Decode (AV1) , 2x Decode (H265∕HEVC，4K H264)
- 2x Encode (H265∕HEVC，4K H264)
Cooler Type
- Active blower fan, two ball bearing
Form Factor
- 2 Part Slot Occupied
- 279.4 (L) *111.15 (W) * 39 (H) mm
External Power Connector
Power Consumption
Accessories
- 12V-2x6 to PCIe 8 pin x3 adaptor
OS
- Windows 11 / 10 - 64-Bit Edition, Linux x86 64-Bit
Miscellaneous
- TPP : 1448
- TPP Density : 2.87
System Requirement
- PCI® Express© compatible motherboard with one x16 PCIe slot
- Minimum 700W or greater power supply
- Minimum 8GB of system memory. Recommended 16GB.
- Supported operating systems include Linux®, Windows 10/11. 64-bit operating system required
