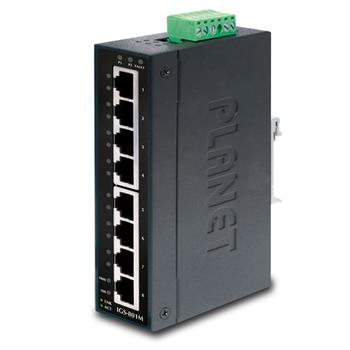

PLANET IP30 Slim type 8-P Industrial

The PLANET IGS-801M is an 8-Port 10/100/1000Mbps Industrial Gigabit Ethernet Switch with non-blocking wire-speed performance and new slim type with IP-30 metal shape for easily deployment in Heavy Industrial demanding environments.

High Gigabit Performance / Wire-Speed Switching
With a 16Gbps internal switching fabric and featuring 9K jumbo packet support in each Gigabit port, the IGS-801M Industrial Gigabit Ethernet Switch can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers. The IGS-801M has 8K MAC Address table and offers wire-speed packets transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments.

Environmentally Hardened Design
With IP-30 industrial case protection, the IGS-801M provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The IGS-801M also provides a wide range of power supply options suitable for multiple industries and for worldwide operation. The feature of operating temperature ranges from -10 to 60 Degree C allowing the Managed Industrial Switch to be placed in almost any difficult environment.

Robust Layer 2 Features
The IGS-801M supports robust advanced features including IEEE 802.1Q VLAN, Port link aggregation, QoS, broadcast storm control, IGMP snooping, and enhanced security to fit a variety of applications. Via aggregation of supporting port, the IGS-801M allows the operation of high-speed trunk combining multiple ports. Maximum up to 4 ports of the IGS-801M can be assigned for 8 trunk groups and support fail-over as well. In additional, its standard-compliant implementation ensures well interoperability with equipments from other vendors.

Remote and Centralized Management
For efficient management, the IGS-801M is built with Web-Based management design to offer a user-friendly configuration interface. Affording the current network to grow and expand, the IGS-801M supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. These features provide a cost-effective way to manage the devices from the Internet whenever you are at work or at home.

Fast Recovery to a Redundant Ethernet Network
The IGS-801M features strong and self-recovery capability to prevent interruptions and outside intrusions. It incorporates Rapid Spanning Protocol (IEEE 802.1w RSTP) and redundant power supply system into customers’ industrial automation network to enhance system reliability and uptime in the harsh factory environments. It also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures.
