EXTREME X440-G2-24T-GE4 FIXED 10/100/1000BASE-TX CPNT
|
|
EXTREME X440-G2-24T-GE4 FIXED 10/100/1000BASE-TX CPNT
-
Product
Managed
-
Ports
24
-
Speed
1Gbps
|
Description
Specifications

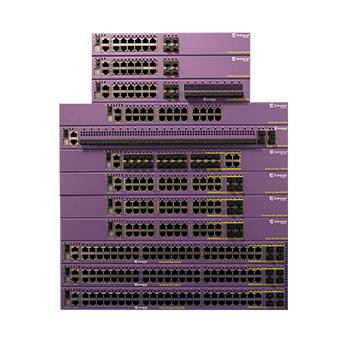

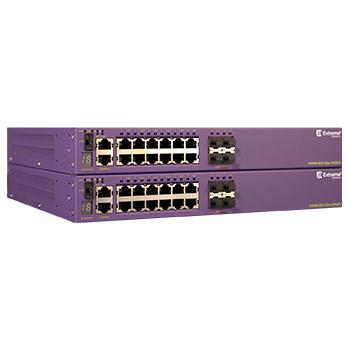

The ExtremeSwitching X440-G2 series is a scalable cost-effective family of edge switches powered by Extreme Networks ExtremeXOS, a highly resilient OS providing continuous uptime, manageability and operational efficiency. The X440-G2 series switches provide high-performance routing and switching, flexible stacking, PoE-plus support and comprehensive security, while extending the benefits of ExtremeXOS to the campus edge.
The X440-G2 Series easy-to-use, yet powerful, management services include role-based policies for controlled access to specific network applications. Select X440-G2 Series switches can also be cloud managed via ExtremeCloud, Extreme Networks innovative single-pane subscription-based management solution.
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z |
| Full duplex | No |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4092 |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| Jumbo frames support | Yes |
| Rack mounting | Yes |
| Product colour | Burgundy |
| LED indicators | Yes |
| Wall mountable | Yes |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 4096 MB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 38 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Width | 441 mm |
| Depth | 254 mm |
| Height | 44 mm |
| Weight | 3.62 kg |
