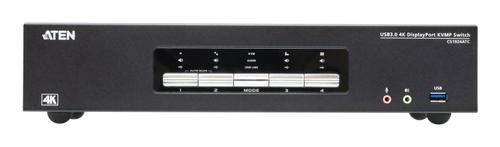

ATEN N KVMP CS1924ATC - KVM / audio / USB switch - 4K, DisplayPort, USB 3.0 - 4 x KVM / audio / USB - 1 local user - desktop
|
|
ATEN N KVMP CS1924ATC - KVM / audio / USB switch - 4K, DisplayPort, USB 3.0 - 4 x KVM / audio / USB - 1 local user - desktop
|
Description
Specifications
The ATEN CS1924ATC 4 Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes.
The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to four USB / DisplayPort-interfaced ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.
With two lockable DC jacks for power redundancy, the CS1924ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime.
Patented ATEN technology – Video DynaSync™, and EDID expert™ , combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.
The CS1924ATC creates a safer environment and enhanced operational efficiency for Air Traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 5 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| Console DisplayPorts ports quantity | 1 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 6 |
| USB connector type | Micro-USB, USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Firmware upgradeable | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | Yes |
| Power source | DC |
| Input voltage | 12 V |
| Power consumption (typical) | 16.84 W |
| Operating temperature (T-T) | 0 - 20 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 161 mm |
| Depth | 335 mm |
| Height | 65.5 mm |
| Weight | 1.88 kg |
| Country of origin | Taiwan |
